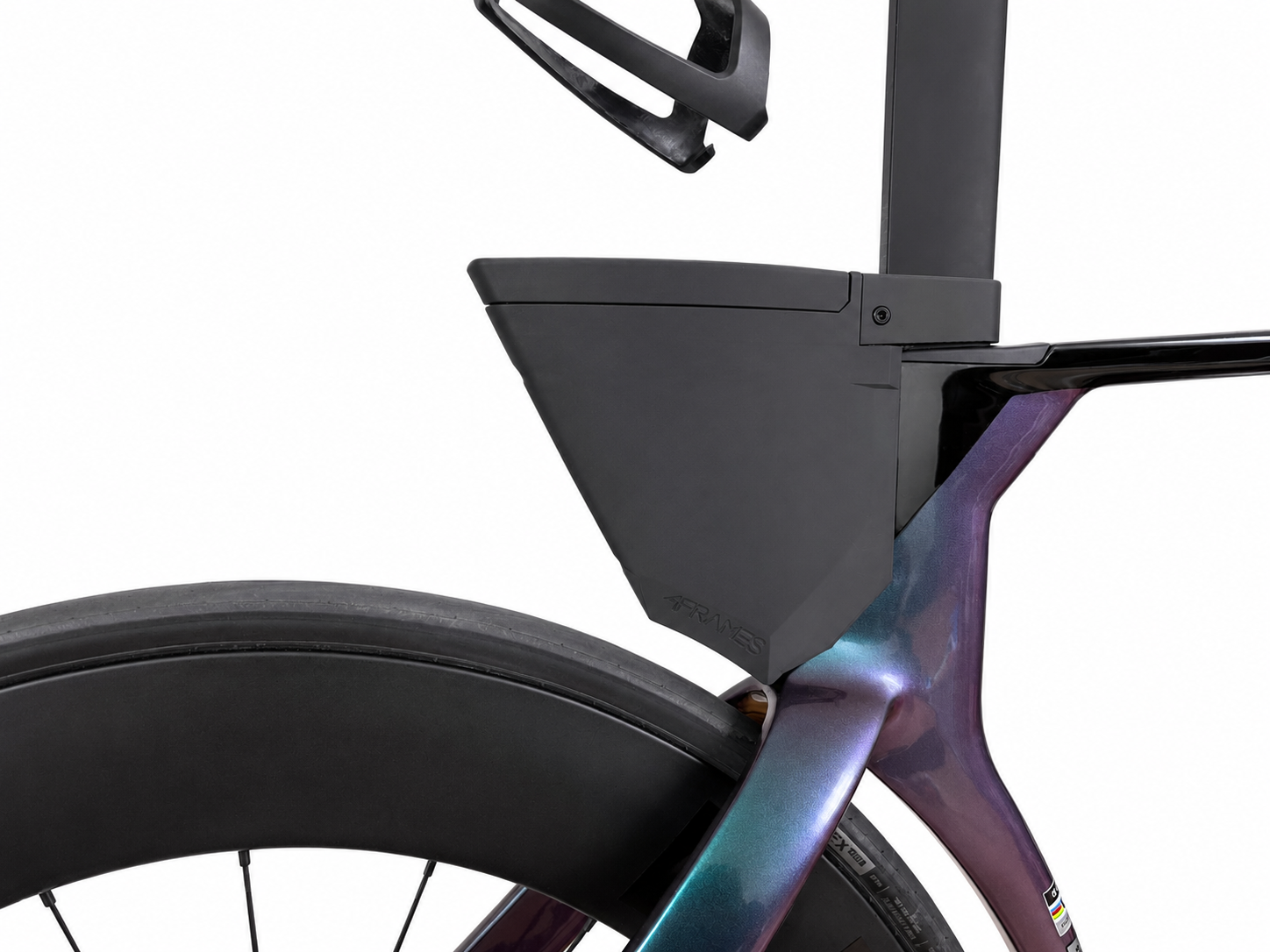

A saddle box that could not be more practical and aerodynamic. Specifically adapted to each frame, the AeroRear sits stably and securely behind the seat tube. It is attached with a collet. Changes on the frame are not necessary for the attachment. Due to the ideal streamlined silhouette of the box, there is no aerodynamic disadvantage. In return, however, you get enormous storage space that can be accessed quickly and conveniently. The magnetically fixed lid closes a large opening through which you can store almost any spare parts and necessary tools.

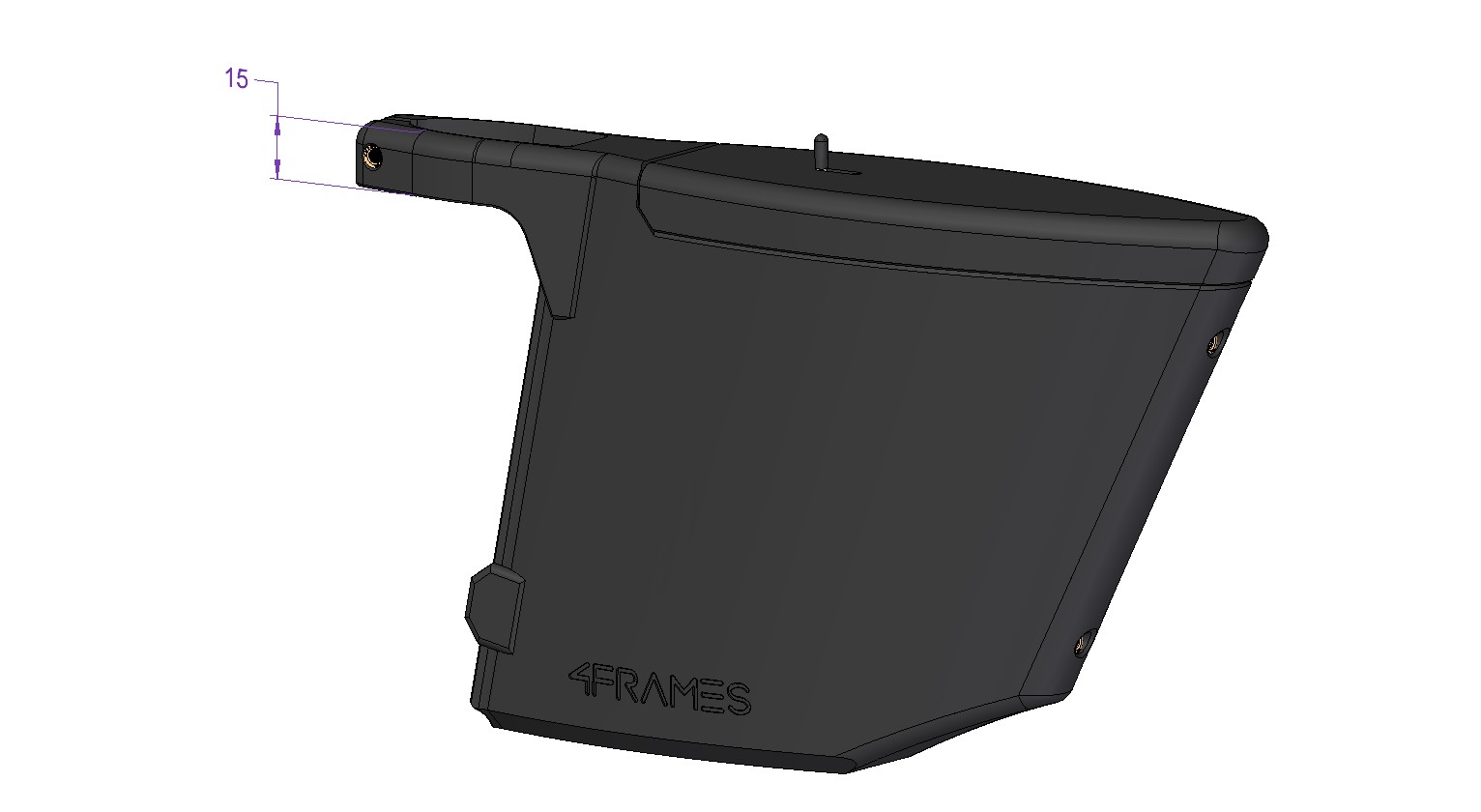

Two melted threads at the rear end of the AeroRear, allow the attachment of accessories. This can be, for example, a holder for a race number, a universal holder for a back light or a holder for a Garmin backlight

AeroRear SLIM

The Slim version of the AeroRear was developed for maximum aerodynamics. It is thinner and shorter than the standard version. Because of this, it has less storage space. You can see the direct size comparison in the slideshow with the pictures. The AeroRear SLIM is only slightly wider than the frame of the bike and thus offers even less resistance.

On some bikes there is not enough space above the rear wheel so only the AeroRear SLIM is available.

Supported bikes:
Canyon Speedmax CF (2016-2020)
Canyon Speedmax CF (2021 and newer)
Canyon Speedmax CF SLX / CFR (2016-2020)
Canyon Speedmax CF SLX / CFR (2021 and newer)
AeroRear für Canyon Speedmax
AeroRear für Canyon Speedmax
AeroRear für Canyon Speedmax
AeroRear für Canyon Speedmax
AeroRear für Canyon Speedmax
AeroRear für Canyon Speedmax
AeroRear für Canyon Speedmax
No items found.
AeroRear
The perfect toolbox for your bike! Individually adapted, light & aerodynamic.
Storage
best possible aerodynamics for maximum storage volume
Lid
Magnets hold the lid in the closed state
Fastening and support surface
The box is clamped around the saddle tube and then rests against it
Mounting options
Melted-in threads enable the attachment of accessory components
Attachment accessories
Optionally order with RearMount Number, RearMount Backlight or RearMount Garmin
Configure your AeroRear now
AeroRear
The perfect toolbox for your bike! Individually adapted, light & aerodynamic.
Storage
best possible aerodynamics for maximum storage volume
Lid
Magnets hold the lid in the closed state
Fastening and support surface
The box is clamped around the saddle tube and then rests against it
Mounting options
Melted-in threads enable the attachment of accessory components
Attachment accessories
Optionally order with RearMount Number, RearMount Backlight or RearMount Garmin
Configure your AeroRear now
AeroRear
The perfect toolbox for your bike! Individually adapted, light & aerodynamic.
Storage
best possible aerodynamics for maximum storage volume
Lid
Magnets hold the lid in the closed state
Fastening and support surface
The box is clamped around the saddle tube and then rests against it
Mounting options
Melted-in threads enable the attachment of accessory components
Attachment accessories
Optionally order with RearMount Number, RearMount Backlight or RearMount Garmin
Configure your AeroRear now
AeroRear
The perfect toolbox for your bike! Individually adapted, light & aerodynamic.
Storage
best possible aerodynamics for maximum storage volume
Lid
Magnets hold the lid in the closed state
Fastening and support surface
The box is clamped around the saddle tube and then rests against it
Mounting options
Melted-in threads enable the attachment of accessory components
Attachment accessories
Optionally order with RearMount Number, RearMount Backlight or RearMount Garmin
Configure your AeroRear now

Details

Specificity:

  • Supported frame sizes: Canyon Speedmax CF (2016-2020) S, M, L, XL and CANYON SPEEDMAX CF (2021 AND NEWER) XS, S, M, L, XL
  • RearMount Garmin not compatible with bike frame size XS and S. All other RearMounts can be used with the frame size XS and S.

Material:

  • FDM print with GreenTEC filament

Volume:

  • AeroRear 650 mL
  • AeroRear SLIM 330 mL

Weight:

  • AeroRear 182g
  • AeroRear SLIM 115g
  • RearMount Backlight 22g
  • RearMount Number 33g
  • rearMount Garmin 31g

Lid:

  • A spring-loaded clamp closes the lid absolutely reliably

Befestigung:

  • clamped around the seat tube. All necessary screws are included
  • No modifications to the frame are necessary.

In the box

  • AeroRear incl. lid,  and melted in threads
  • ordered attachements (RearMounts)
  • 3 stainless steel screws M4x12 black
